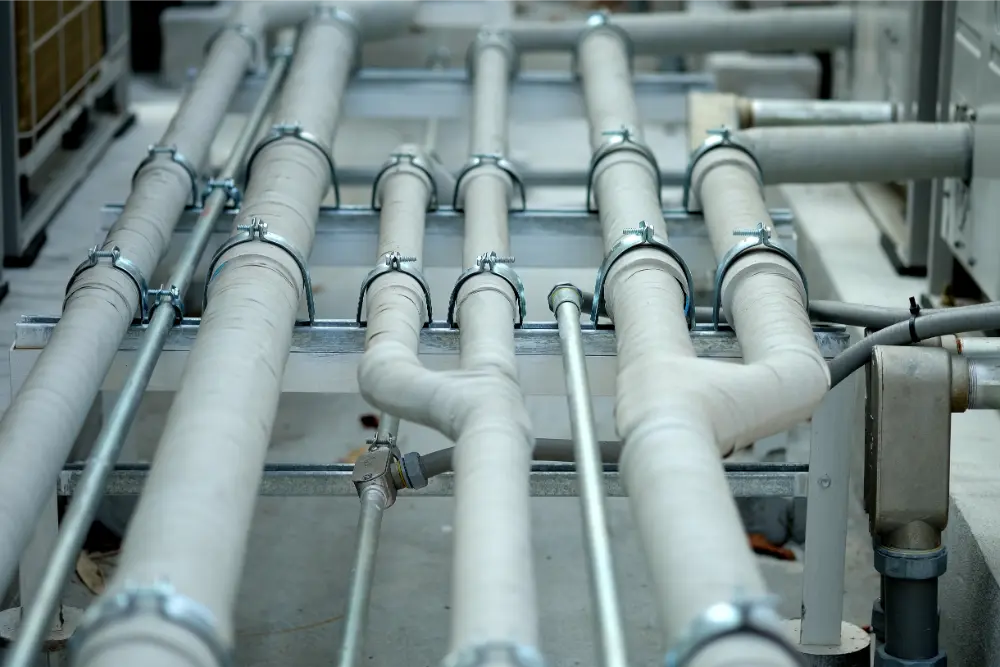

Types of pipe supports

Why Do Industries Use Different Types of Pipe Supports?

In industrial facilities, piping systems are the lifelines of operations. Whether it is a chemical plant, power station, or oil refinery, pipes transport essential fluids, gases, and sometimes solids throughout the facility. However, these piping systems are subjected to various stresses, including thermal expansion, vibrations, fluid weight, and environmental conditions. To ensure safety, longevity, and efficiency, industries use different types of pipe supports.

Al Safrik Steel, one of the top steel fabricators in Saudi Arabia, provides high-quality steel-fabricated products for commercial setups. From Storage Racks to mega forklift attachments, you can order suitable products for the establishment of your business.

In today’s blog, we will explore why these supports are essential, the different types available, and how they are applied in industrial scenarios.

Understanding Pipe Supports

They are structural components designed to hold piping systems in place, preventing sagging, vibrations, and misalignment. Well-utilized to serve both mechanical and functional purposes, including:

  1. Mechanical Support: Pipe supports bear the weight of the pipe and its contents. They also counteract dynamic forces such as fluid hammer and vibration.
  2. Functional Support: Proper supports maintain the alignment and gradient of piping, ensuring smooth fluid flow and system efficiency.

Choosing the correct types of pipe supports is crucial because it directly impacts operational safety and system performance. By using appropriate types of pipe supports, industries minimize maintenance costs, reduce downtime, and prevent catastrophic failures.

Importance of Using Different Types of Pipe Supports

Not all pipes carry the same kind of fluid, operate at the same temperature, or face the same environmental conditions. Therefore, a single type of support cannot serve all purposes. Here are some reasons industries rely on varied pipe supports:

Load Distribution:

Pipes carry fluids that vary in density and flow rate. For example, a pipeline transporting water exerts less load than a pipeline carrying heavy industrial chemicals. Different pipe supports distribute weight differently. Clamps and hangers are suitable for lighter pipes, while saddles and rollers are used for heavy pipes.

Thermal Expansion Accommodation:

Industrial piping systems often carry hot fluids, causing thermal expansion. Rigid supports can lead to stress buildup, potentially causing leaks or cracks. In such cases, spring supports and sliding supports allow controlled movement, ensuring the pipe can expand or contract safely.

Vibration Control:

Machinery and pumps generate vibrations that travel through connected pipes. Specific supports, like vibration isolators and dampers, minimize these effects, preventing wear and failure in the pipeline.

Safety and Compliance:

Industrial safety standards and codes, such as ASME B31.1 and B31.3, mandate the use of proper pipe supports. Using the correct support type not only ensures compliance but also enhances worker safety by preventing accidents caused by pipe failures.

Types of Pipe Supports

There are many types of pipe supports commercially used in different industries, each tailored to specific requirements. Here is an in-depth look at the most common types:

1.   Hangers:

It supports the idea of suspending pipes from ceilings or structural elements. They are widely used in both low-pressure and high-pressure systems. Hangers can be further classified into:

Clevis Hangers: U-shaped clamps that support pipes vertically.

Spring Hangers: Designed for pipes with significant thermal expansion, allowing vertical movement.

Swivel Hangers: These provide angular adjustments for pipes, ideal for complex piping layouts.

Hangers are crucial for overhead piping systems, preventing sagging and ensuring smooth flow.

2.   Clamps:

They secure pipes to walls, floors, or other structures and are versatile and commonly used in industrial applications. Clamps can be made from carbon steel, stainless steel, or alloys, depending on the environment. Al Safrik Steel provides a range of durable clamps suitable for high-pressure systems, ensuring both stability and corrosion resistance.

3.     Saddles:

It is a U-shaped supports that cradle the pipe, distributing weight evenly. They are particularly suitable for horizontal pipes, minimizing stress and preventing deformation. Saddles are essential in heavy piping systems like those found in refineries and power plants.

4.   Roller Supports:

These supports allow horizontal movement while supporting vertical loads, ideal for pipelines subjected to thermal expansion or contraction. By reducing friction, rollers prevent pipe damage and extend the service life of the system.

5.   Guides:

Pipe guides are fixed supports that allow movement in a particular direction while restricting movement in others. They help maintain alignment and prevent lateral displacement. Guides are essential in systems with long straight runs of piping.

6.   Anchors:

They are fixed supports that prevent all movement of a pipe at a specific point. Anchors are critical in controlling thermal expansion and managing stress distribution throughout the pipeline. Improper placement of anchors can lead to structural failures, making them a vital consideration in piping design.

7.   Vibration Isolators:

Pipes connected to machinery often experience vibrations. Vibration isolators or dampers reduce these vibrations, protecting both the pipe and connected equipment. They also help in reducing noise levels in industrial facilities.

Material Considerations for Pipe Supports

Pipe supports must be made from materials capable of withstanding environmental conditions and mechanical stresses. Common materials include:

  • Carbon Steel: Strong, cost-effective, and suitable for most industrial applications.
  • Stainless Steel: Corrosion-resistant, ideal for chemical and food processing industries.
  • Alloys: Specialized alloys are used for high-temperature and high-pressure applications.

Our renowned company is famous for providing high-quality steel supports that meet industry standards, ensuring reliability even in challenging conditions.

Factors Influencing the Choice of Types of Pipe Supports

Selecting the appropriate pipe support is a strategic decision influenced by multiple factors:

  1. Pipe Size and Weight: Heavier pipes require robust supports like saddles or spring supports, while smaller pipes can use clamps or hangers.
  2. Operating Temperature: High-temperature fluids cause thermal expansion. Supports like spring hangers or sliding supports accommodate this movement.
  3. Environmental Conditions: Corrosive environments demand stainless steel or coated supports to prevent degradation.
  4. Load Type: Supports must handle static loads (weight of the pipe and fluid) and dynamic loads (vibrations, seismic activity, or pressure surges).
  5. Safety Requirements: Compliance with industry codes ensures that supports provide adequate safety margins and prevent catastrophic failures.

Benefits of Using Proper Pipe Supports

The pipe supports share the following advantages, including:

They will Improve Operational Efficiency:

Properly supported pipes maintain alignment and prevent unwanted sagging or bending, which can interfere with fluid flow. Misaligned pipes create friction, turbulence, and pressure drops, which reduce system efficiency and increase energy consumption. For instance, a pipeline transporting chemicals in a refinery will operate more efficiently if the supports prevent any sagging or vibration that could disrupt flow. Efficient flow means lower operational costs and more consistent performance of the industrial process.

Reduced Maintenance Costs:

Inadequate support often leads to frequent maintenance issues such as leaks, corrosion at stress points, or damaged insulation. These problems not only require repair but can also halt operations temporarily, leading to financial losses. By installing proper pipe supports, industries can prevent these stress-related damages. Spring supports, clamps, and roller supports reduce mechanical strain and vibration, which significantly lowers maintenance requirements and prolongs the lifespan of both pipes and connected equipment.

Compliance with Industry Standards:

Industrial facilities must adhere to strict safety and quality standards, such as ASME B31.1 for power piping or B31.3 for process piping. Proper pipe supports are not just a technical requirement—they are a legal and regulatory necessity. Using supports that meet the prescribed specifications ensures that the piping system is compliant, reducing liability and demonstrating commitment to safety and operational excellence.

Noise and Vibration Control:

Pipes connected to pumps, compressors, or high-flow systems often generate noise and vibration. Without proper support, vibrations can propagate through the piping network, causing wear, loosening of joints, and even structural damage. Vibration isolators, dampers, and resilient hangers minimize these effects, protecting both the piping system and the surrounding infrastructure while reducing noise pollution in the facility.

Optimized Load Distribution:

Pipes carry both static loads (weight of the pipe and fluid) and dynamic loads (vibration, flow surges, seismic activity). Proper supports, such as saddles, clamps, and roller supports, ensure that these loads are distributed evenly across the system. Uneven load distribution can lead to bending, sagging, and localized stress, which may cause premature failure. By optimizing load distribution, supports enhance the reliability and safety of the entire piping network.

Moreover, to further improve and grow your business, it is highly recommended to take the free consultancy. Our team will discuss your demands and requirements with you and deliver the perfect product essential for your business.

FAQs

What is the primary purpose of pipe supports in industries?

The primary purpose is to provide stability, reduce stress, and protect pipelines from damage caused by weight, vibration, and thermal expansion.

Why are different types of pipe supports used instead of one standard type?

Different supports are designed to handle specific conditions like heavy loads, vertical or horizontal positioning, vibration control, or thermal movement, making a single type insufficient for all needs.

How do pipe supports help in reducing maintenance costs?

By properly supporting pipelines, they minimize wear, prevent sagging, reduce the risk of leaks, and extend the lifespan of the system, which lowers repair and replacement costs.

What factors determine the selection of a pipe support?

Key factors include pipe size, operating temperature, pressure, movement requirements, load conditions, and environmental factors such as humidity or chemical exposure.

Do pipe supports also enhance workplace safety?

Yes, proper pipe support prevents accidents caused by pipe failure, leaks, or structural damage, ensuring safer working conditions for employees.

Conclusion

Industries rely on different types of pipe supports to manage the unique challenges posed by piping systems. From controlling weight and vibrations to accommodating thermal expansion, these supports are indispensable for operational efficiency, safety, and longevity. Companies like Al Safrik Steel provide high-quality, durable solutions for various industrial needs, ensuring that each pipe system functions reliably under all conditions.

Understanding the types, functions, and materials of pipe supports allows engineers and maintenance teams to make informed decisions. The correct support not only protects the infrastructure but also safeguards human lives and ensures smooth industrial operations.

By appreciating the critical role of pipe supports, industries can design piping systems that are resilient, safe, and efficient, ready to withstand the demands of modern industrial processes.
